DxH 690T

Hematology Analyzer

Trusted Quality for Mid-Volume Labs

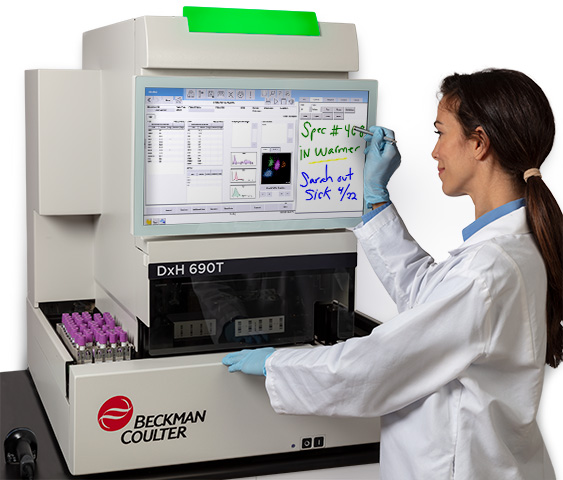

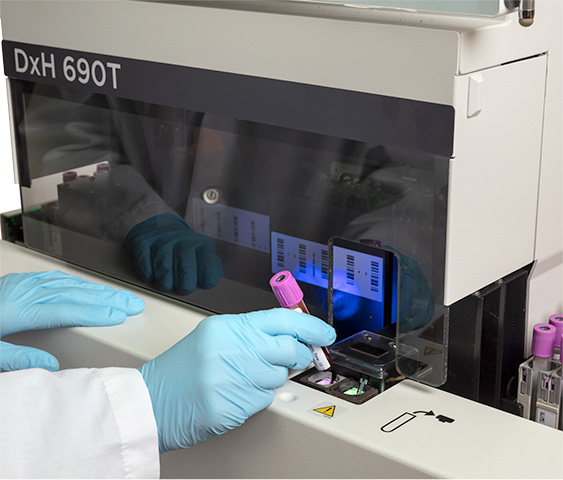

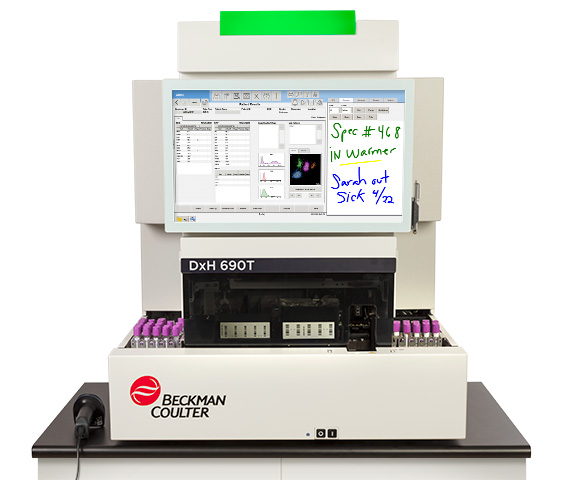

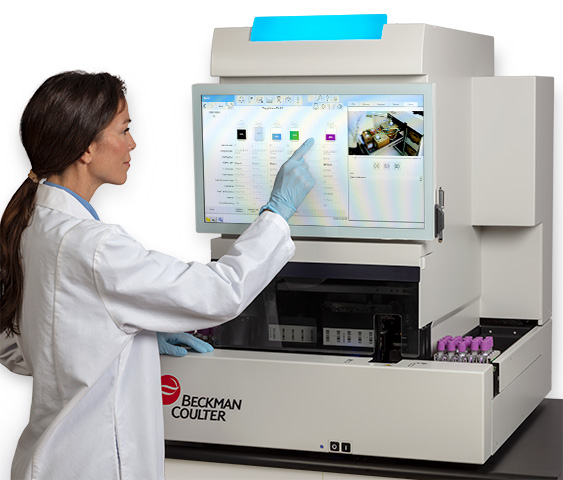

The DxH 690T is a benchtop hematology analyzer that delivers trusted results for mid-volume labs. With this table-top configuration, you can count on best-in-class hematology technology, minimal slide reviews, maximum efficiency, and significant cost savings.

C34520 - DxH 690T Hematology System (including 3 styluses)
C42399 - Sales Group: DxH 690T (OUS)

This product may not be available in your country or region at this time. Please contact your Beckman Coulter sales representative or distributor for more information.

Overview
Specifications

Quality That Counts

Trust your results—the first time—with a high-quality benchtop hematology analyzer that delivers precise, accurate results and advanced cellular insights.

Achieve superb RBC, PLT, and WBC differentials through near-native-state cellular characterization
Deliver high-confidence results on the first run—minimizing reruns or reflex tests
Improve slide interpretations with intelligent technology that helps optimize smearing, ensuring consistent slide quality

Productivity That Liberates

Free up your mid-size laboratory’s hematology team and empower your busy staff to focus on samples and tasks that truly need attention.

Simplify workload planning with predictable hematology workflows that let you save time for the unexpected
Optimize your limited resources with reliable flagging

Savings That Empower

Tap into powerful savings to help your lab devote time, budget, and resources where they are needed most.

Streamline QA/QC processes through customizable, automated technology with daily reminders and remote support
Save time, reduce costs, and optimize hematology instrument usage with fewer reflex tests

Reduce hematology reagent use and associated costs
Reallocate up to 200 minutes of daily run-time previously spent on reflex testing¹
Reduce overhead costs like electricity and maintenance

Main Specifications

Methodology	Enhanced Coulter Principle, VCS 360 with DataFusion
Parameters	CBC: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW, RDW-SD, PLT, MPV Differential: NE%, LY%, MO%, EO%, BA%, NRBC%, NE#, LY#, MO#, EO#, BA#, NRBC #, MDW (when enabled) Retic: RET, RET#, MRV, IRF Body Fluids (Cerebrospinal, Serous, or Synovial): RBC, TNC
Throughput (tests per hour)	Up to 100 samples/hour
Sample Volumes	Whole Blood: 165 μL aspiration volume. Predilute: 50 μL whole blood into 200 μL of diluent
Analytical Measuring Ranges¹	Whole Blood (CBC)
	Parameters		Units		Analytical Measuring Range
	WBC		x10³ cells/μL		0.050–400.000
	RBC		x10⁶ cells/μL		0.005–8.500
	HGB		g/dL		0.10–25.50
	MCV		fL		50.00–150.00
	RDW		%		10.00–40.00
	RDW-SD		fL		15.00–150.00
	PLT		x10³ cells/μL		3.0–3000.0
	MPV		fL		5.00–25.00
	Body Fluids
	TNC		cells/mm³		20–89,000
	RBC		cells/mm³		1,000–6,200,000
Data Management	Up to 50,000 patient results with histograms, scatter plots, and demographics 100,000 patient results with graphics for power computer
Quality Assurance	QC with Levy-Jennings graph; XB/XM for moving averages, daily check, intelligent quality monitoring, MRV, IRF, customizable calibration and QC reminders and alerts, auto export of QC
Acoustic Noise Level	≤ 60 dBa
Radio Frequency and Interference Immunity	Meet the product level standards EN 61326-1 (Electrical Equipment for Measurement, Control, and Laboratory Use—EMC Requirements), and EN 61326-2-6 (Part 2, Specific Requirements for In-Vitro Diagnostic Devices)
Power Consumption	DxH 690T SPM: 520 W (1775 BTU/hour), Monitor: 35 W (120 BTU/hour), DxH Power Computer: 160 W (546 BTU/hour)
Dimensions and weight²	Width	Height		Depth		Weight
	76.2 cm (30 in.)	90.17 cm (35.5 in.), with cover closed 113.03 cm (44.5 in.), with cover open		83.82 cm (33 in.), including the removable back panel 80 cm (31.5 in.), excluding the removable back panel		~141.97 kg (313 lbs.), including monitor ~136.98 kg (302 lbs.), excluding monitor
Additional Clearance	15.2 cm (6.0 in.) per side of instrument for troubleshooting; 3.8 cm (1.5 in.) behind instrument for sufficient cooling
